Description
| Code | Picture | Drawing | Installation | Input | Finish color | SIZE(MM) |
|---|---|---|---|---|---|---|
| S20-1 magnet track |  |  | surface mounted or suspendant | 48V DC | SBK/SWH | L1000/2000/3000mm |
| S20 magnet track |  |  | 48V DC | SBK/SWH | L1000/2000/3000mm | |

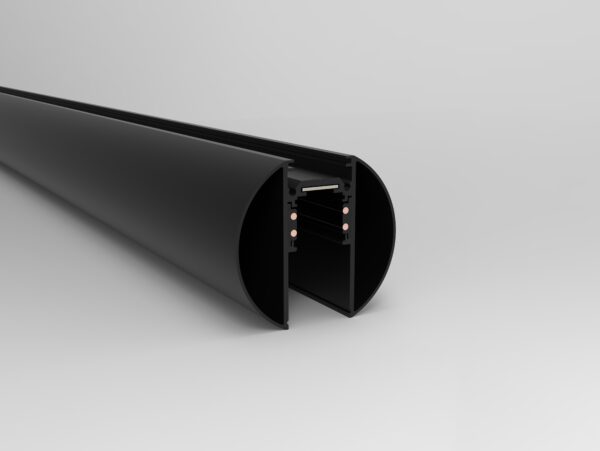

| S20-2 |  |  | 48V DC | SBK/SWH | L1000/2000/3000mm | |

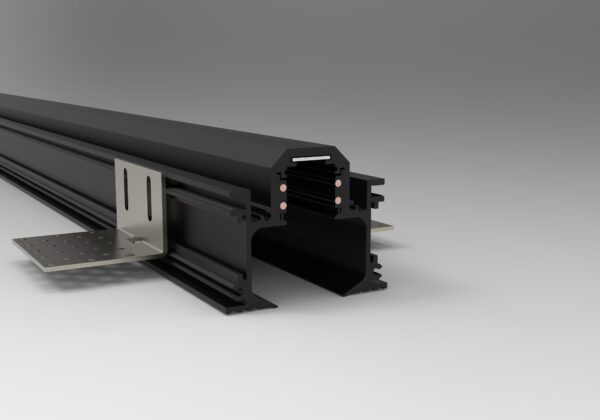

| R20-1 |  |  | 48V DC | SBK/SWH | L1000/2000/3000mm | |

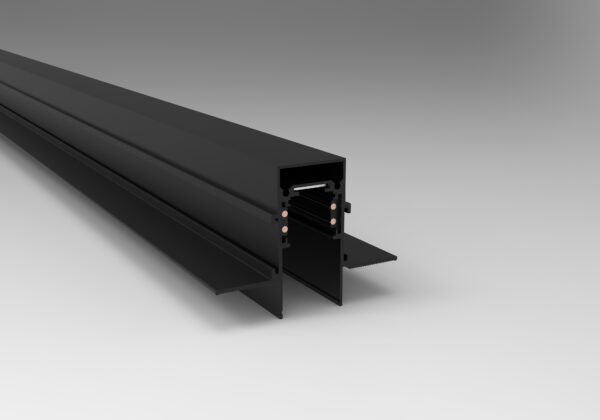

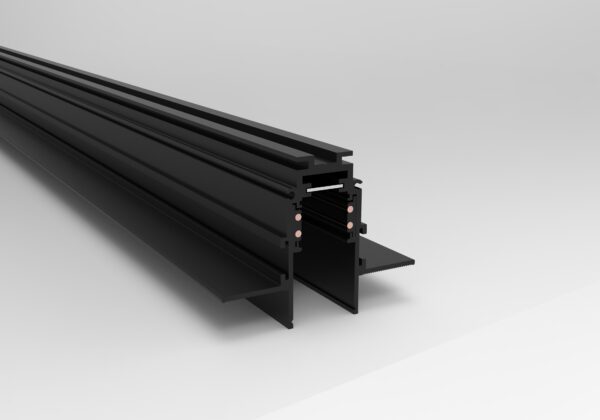

| R20-2 magnet track |  | | Recessed for the gypsum board | 48V DC | Oxidating Black/SWH | L1000/2000/3000mm |
| R20-5 magnet track |  |  | 48V DC | Oxidating Black/SWH | L1000/2000/3000mm | |

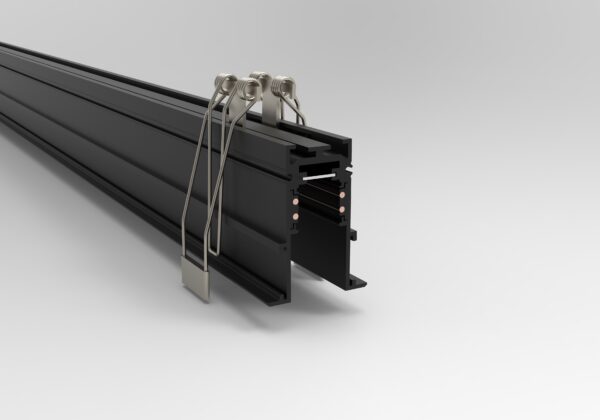

| R20-4 magnet track |  |  | 48V DC | SBK/SWH | L1000/2000/3000mm | |

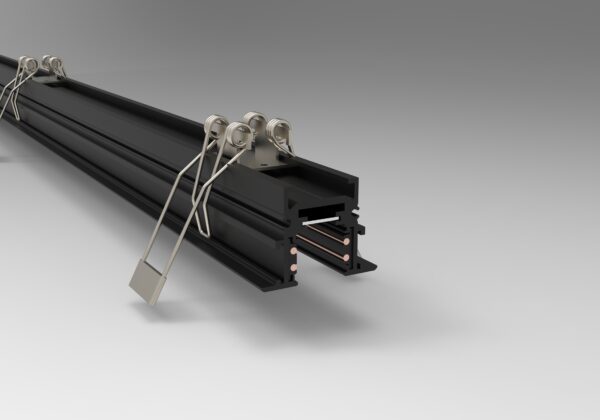

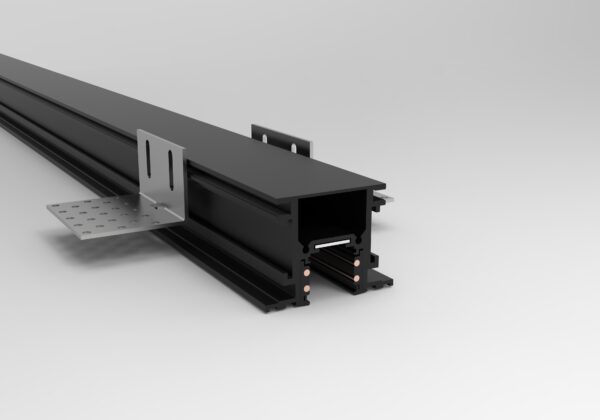

| RM magnet track |  |  | 48V DC | SBK/SWH | L1000/2000/3000mm | |
| SM magnet track |  |  | 48V DC | SBK/SWH | L1000/2000/3000mm |
| Name | Code | Picture | Wattage | CRI | LED Chip | Input | Finish colour | SIZE(mm) | Beam angle | CCT | System Options |
| DFS | M20 DFS-30 |  |
10W | 90 | Osram | 48v driver | SBK/SWH | L300*W22*H25mm | 120° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| M20 DFS-60 | 20W | 90 | Osram | 48v driver | SBK/SWH | L600*W22*H25mm | 120° | ||||
| M20 DFS-90 | 30W | 90 | Osram | 48v driver | SBK/SWH | L900*W22*H25mm | 120° | ||||
| M20 DFS-120 | 40W | 90 | Osram | 48v driver | SBK/SWH | L1200*W22*H25mm | 120° | ||||
| LB | M20 LB6 |  |
6W | 90 | Osram | 48v driver | SBK/SWH | L112*W22*H25mm | 24°/36° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| M20 LB12 | 12W | 90 | Osram | 48v driver | SBK/SWH | L220*W22*H25mm | 24°/36° | ||||
| M20 LB18 | 18W | 90 | Osram | 48v driver | SBK/SWH | L328*W22*H25mm | 24°/36° | ||||
| M20 LB24 | 24W | 90 | Osram | 48v driver | SBK/SWH | L435*W22*H25mm | 24°/36° | ||||
| DFS-90 | M20-DFS-90° |  |
16W | 90 | Osram | 48v driver | SBK/SWH | L325*W305*H25mm | 120° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| TL | M20-TL-7W |  |
7W | 90 | Bridgelux | 48v driver | SBK/SWH/GD | Ф40*90 | 15°/24°/36° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| M20-TL-12W | 12w | 90 | Bridgelux | 48v driver | SBK/SWH/GD | Ф50*136 | 15°/24°/36° | ||||
| M20-TL-15W | 15w | 90 | Bridgelux | 48v driver | SBK/SWH/GD | Ф62*147 | 15°/24°/36° | ||||
| M20-TL-20W | 20w | 90 | Bridgelux | 48v driver | SBK/SWH/GD | Ф75*158 | 15°/24°/36° | ||||
| LBM | M20-LBM-6W |  |
6w | 90 | Osram | 48v driver | SBK/SWH | L113*W22*H55 | 24°/36° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| M20-LBM-12W |  |
12w | 90 | Osram | 48v driver | SBK/SWH | L226*W22*H55 | 24°/36° | |||
| DFSM | M20-DFSM6W |  |
6w | 90 | Osram | 48v driver | SBK/SWH | L113*W22*H55 | 120° | 3000K 4000K 6000K | |
| M20-DFSM12W |  |
12w | 90 | Osram | 48v driver | SBK/SWH | L226*W22*H55 | 120° | |||
| LBM2 | M20-LBM2-15W |  |
15W | 90 | Osram | 48v driver | SBK/SWH | L115*W22*H120mm | 24°/36° | 3000K 4000K 6000K | |
| M20-LBM2-25W |  |
25W | 90 | Osram | 48v driver | SBK/SWH | L230*W22*H145mm | 24°/36° | 3000K 4000K 6000K | ||
| DFSM2 | M20-DFSM2-15W |  |
15W | 90 | Osram | 48v driver | SBK/SWH | L115*W22*H120mm | 120° | 3000K 4000K 6000K | |
| M20-DFSM2-25W | 25W | 90 | Osram | 48v driver | SBK/SWH | L230*W22*H145mm | 120° | 3000K 4000K 6000K | |||
| PB | M20-PB-7W |  |
7W | 90 | OSRAM | 48v driver | WH+BK/GD | ¢100mm | 120° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| FM1 | M20-FM1-9W |  |
9w | Ra90 | Bridgelux | 48v driver | SBK/SWH | Φ40*300 | 18°/25°/35° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| FM2 | M20-FM2-9W |  |
9w | 90 | Bridgelux | 48v driver | SBK/SWH | ¢60*300mm | 18°/25°/35° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| TB | M20-TB-300 |  |
6W | 90 | OSRAM | 48v driver | WH | φ26*300mm | 120° | 3000K 4000K 6000K | Regular 0-10V Dali Bluetooth Zigbee |
| TB | M20-TB-600 | 12W | 90 | OSRAM | 48v driver | WH | φ26*600mm | 120° | 3000K 4000K 6000K |
